The Black Cat II Plus Radar Recorder makes traffic data collection for traffic engineering highly efficient and safe. Simply set up the device off the roadway—no lane markings or road entry required—to detect up to two lanes of traffic in the same or bi-directional. Utilizing advanced sensors, it provides high-accuracy vehicle data including volume, speed, length classification, and following distance. The system is housed in a rugged Pelican brand case to protect against elements and abuse, and it operates on a lightweight, rechargeable Lithium battery that can be easily swapped in the field for zero operational downtime. Once data is captured, it integrates seamlessly with the STARnext software, featuring a live view mode for effortless setup, download, and report generation.

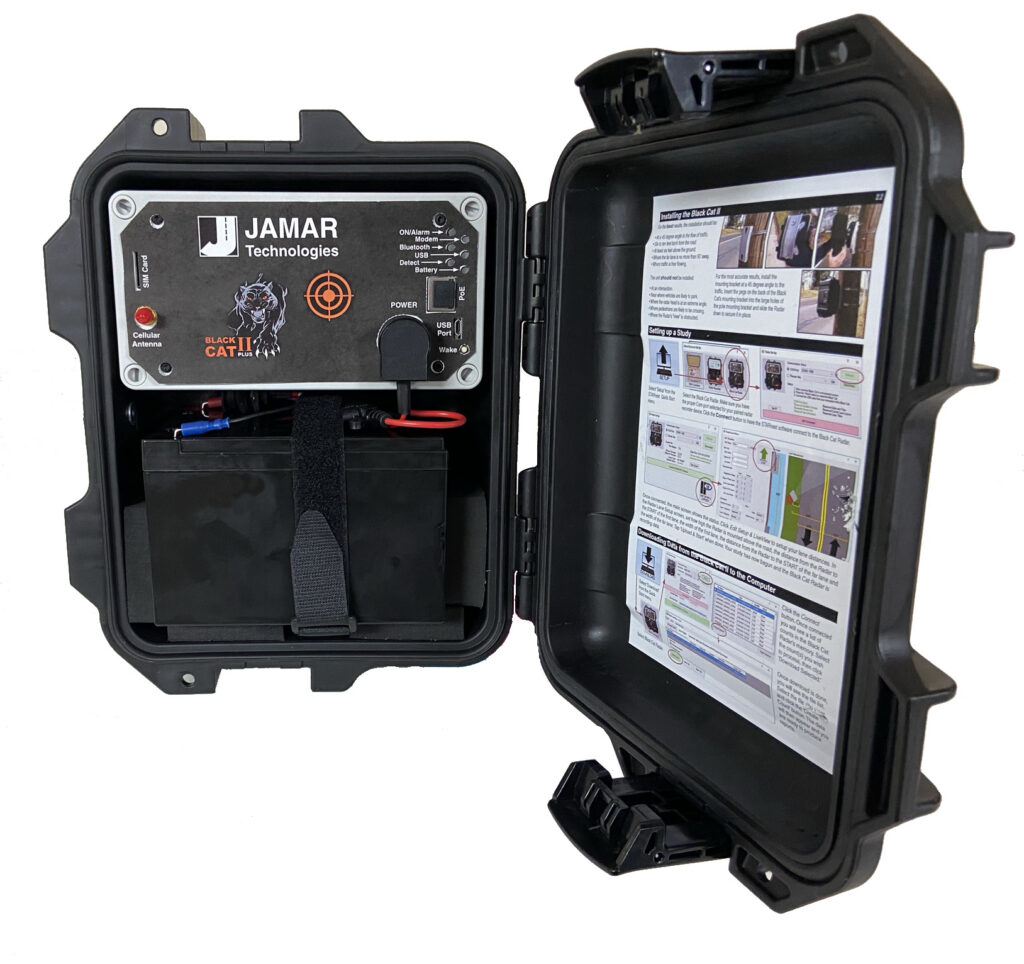

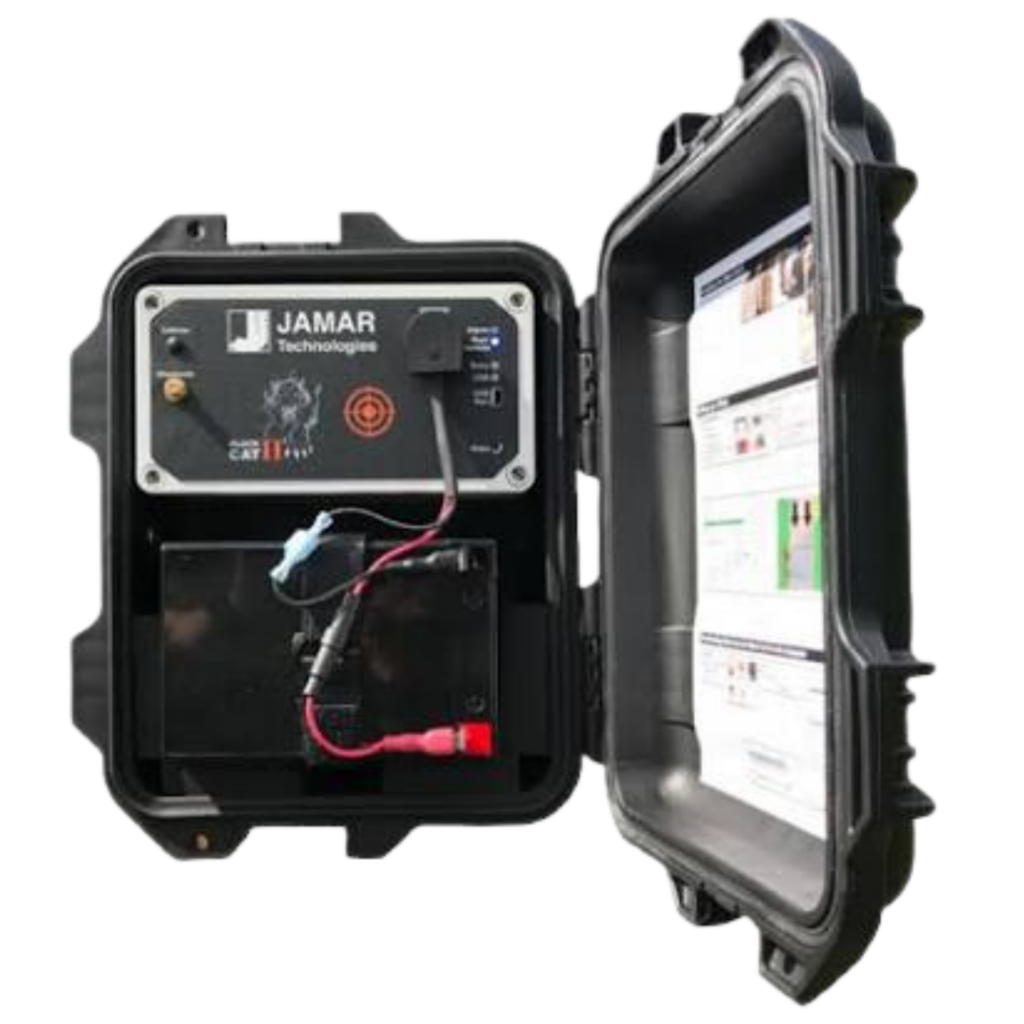

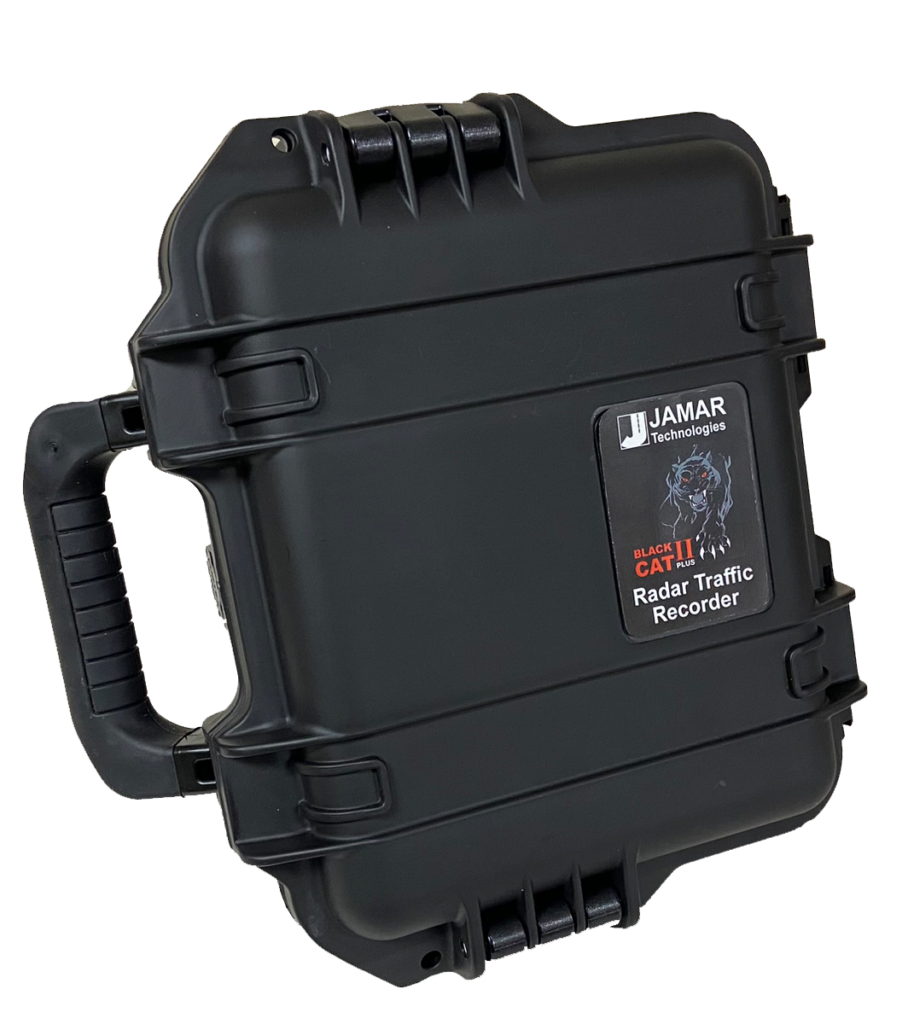

Black Cat II Plus Radar Recorder
Product Specifications
-
Configuration: 2 Lanes, bi- or same direction
-
Memory Size: 2GB (approx. 200,000,000 vehicles)
-
Data Storage: Up to 256 Data Files
-
Speed Range: 7 – 130 mph
-
Radar Range: 100 Feet
-
Operating Temperature: -40°F (-40°C) to +158°F (+70°C)
-
Count Accuracy: 98% (ignoring obscuration)
-
Speed Accuracy: +/- 2% at 95% confidence
-
Length Accuracy: +/- 16 Inches or +/- 5% (whichever is greater) at 95% confidence
-
Software: STARnext
-
Remote Access: Optional Modem / Optional Solar Panel
-
Network & Wireless: Ethernet, Power over Ethernet (PoE), Wireless (Up to 100 ft range)
-
Battery: 12 Volt Lithium (7-10 days charge life)
-
Weight (with Battery): 14 lbs.
-
Approval: CE and FCC Approved
-
Manufacturer: TagMASTER UK
