RAC GEO IV

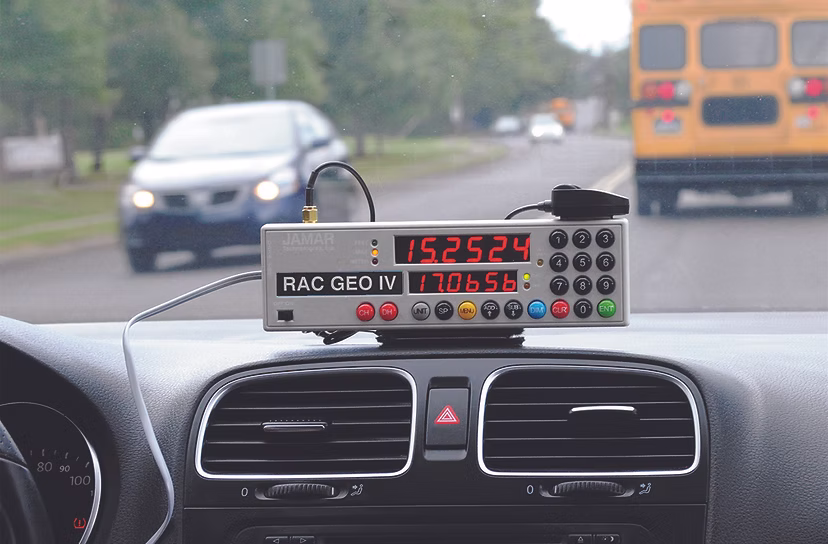

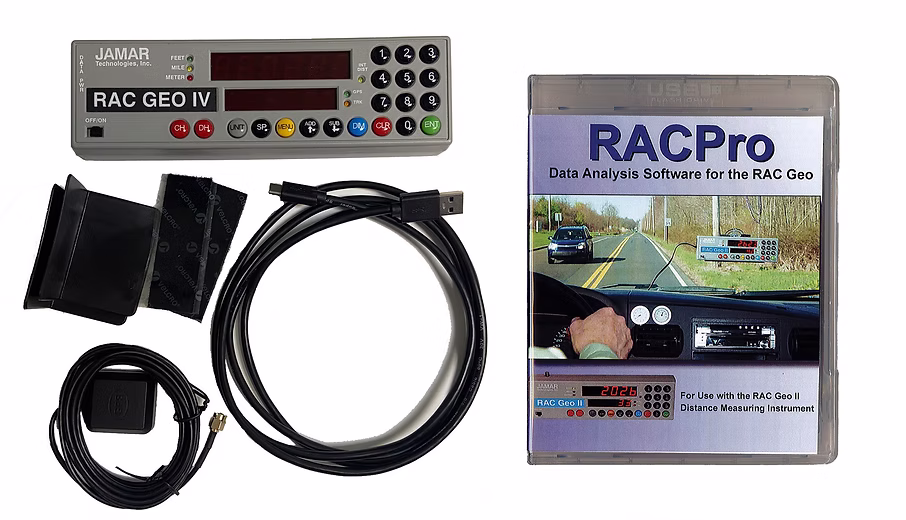

The RAC GEO IV makes mobile traffic asset management and distance measuring highly efficient and safe. Plug the device into a vehicle’s USB port for power—no hardwired connection, vehicle calibration, or complex installation required—to easily measure distances as you drive. Utilizing an internal WAAS-enabled GPS receiver, it provides high-accuracy data, allowing you to jump from vehicle to vehicle seamlessly. The system is housed in a rugged, non-warping ABS plastic case and features dual high-intensity LED windows with adjustable brightness for effortless reading in any lighting condition. Once data is captured, it integrates seamlessly with the RACPro software for advanced data analysis, report generation, and mapping.

• Power Supply: 5 to 16 VDC, negative ground (Power consumption: 1.5a @ 5v, 0.5a @ 12v)

• Memory Size: 128 MB (Stores 1,000,000+ events & 100+ hours of GPS tracking)

• Display Type: Dual 6-digit window, high-intensity LED with 4 brightness levels

• Speed Range: 0 – 999 mph / kph (Displayed simultaneously with distance)

• Distance Accuracy: +/- 5 feet per mile (Internal GPS); +/- 1 foot per mile (External sensor)

• GPS Accuracy: ~2 meters with WAAS enabled (~6 meters without WAAS)

• GPS Receiver: 66-channel, WAAS-enabled internal receiver

• Operating Temperature: 32°F (0°C) to 167°F (+75°C)

• Data Interface: USB Serial Port

• Keyboard: 20 sealed keys (5 million operations rated) with click & tone feedback

• Dimensions: 7.8″ W x 2.3″ H x 1.2″ D

• Weight: 6.5 oz.

• Warranty: 5-year instrument warranty
