RAC-GEO-II

Use GPS coordinates to measure as you drive!

Accurate up to 1 foot per one thousand feet!

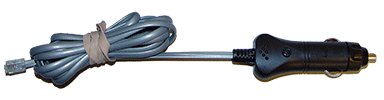

The only connection made in the vehicle is plugging the RAC-GEO-II into the 'cigarette lighter' for power.

There is no hardwired connection, no installation, no calibration.

Easily jump from vehicle to vehicle.

Let our decades of DMI development experience work for you.  Along with our knowledgeable sales/support staff,  JAMAR also maintains two full-time DMI experts on staff (with a combined experience of 40+ years).

The RAC-GEO-II includes all the benefits of the RAC-Plus-I while also allowing you to save your distances, coordinates and customized ID markers in the unit's expansive memory.  Download data into the RACPro Software to quickly generate reports, graphs, maps, spreadsheets and more.  The RAC-GEO-II real-time data collection option even let's you measure and collect data in real time, on the fly!

The RAC-GEO-II is the most accurate and powerful GPS DMI on the market. The RAC-GEO-II is built to last, with high grade components and a proven industry track record.   Skip the process of trying those cheaply made, short lived units made by other brands.  Let our decades of DMI development experience work for you.  Along with our knowledgeable sales/support staff,  JAMAR also maintains two full-time DMI experts on staff (with a combined experience of 40+ years).

FEATURES

  • GPS Distance Measuring

Built-in GPS receiver, accurate up to 1 foot per one thousand feet.  No external sensor required.

Magnetic Sensor and Modular Sensor can be added to increase accuracy even further, if needed.

  • Memory

Store up to 400,000 events in memory (nonvolatile RAM NVRAM).

Ideal for inventory applications, identifying signs, guide rails, pavement markings, intersections, railroad crossings or other highway features.

  • Data Output

Download data into JAMAR's RACPro Software. The downloaded data contains the memory location, event code, GPS coordinates, distance, interval distance, time and speed for each event.

  • Record Accurate Distances along with GPS Coordinates

Store up to 30 hours of continuous GPS data, at one second intervals, while recording roadway distance in the RAC-GEO-II's internal memory. Using this powerful inventory tool, you can record road features (intersections, bridges, signs, guide-rail, etc.) along with their distance and GPS coordinates.​​

  • Several Data Retrieval & Processing Options

Read your data from the RAC-GEO-II display, save data in the unit's internal memory, download data into the RACPro Software, collect data in Real-Time (using RACPro).

Read data while the vehicle is stopped or moving.

  • Unmatched GPS Recording Accuracy

The RAC Geo II uses a GPS receiver which incorporates the Wide Area Augmentation System (WAAS) for improving accuracy of GPS signals. WAAS uses a correction signal created by a collection of 25 land-based stations that are spread out across North America. This correction signal is then broadcast from specialized communication satellites.

With WAAS enabled, our 66 channel GPS receiver capability allows 2D GPS accuracy of approximately 2 meters. Without WAAS, depending on the location in the continental US and satellite accessibility, horizontal GPS accuracy is approximately 6 meters. This, along with the RAC-GEO-II's distance accuracy of up to+/- 1 foot per one thousand feet provides unequaled data collection capabilities.

RACPro SOFTWARE

Take advantage of all the RAC-GEO-II capabilities with the RACPro Software!

RACPro is a Windows-based data analysis & reporting software for the RAC-GEO-II DMI.

  • Download data into the RACPro Software to quickly generate reports, graphs, maps, spreadsheets and more.  The RACPro real-time data collection option even let's you measure and collect data in real time, on the fly!

  • Ideal for inventory applications, identifying signs, guide rails, pavement markings, intersections, railroad crossings or other highway features.

  • The downloaded data contains the memory location, event code, GPS coordinates, distance, interval distance, time and speed for each event.

  • Data that has been collected with GPS coordinates can also be mapped using Google Earth and Google Maps.

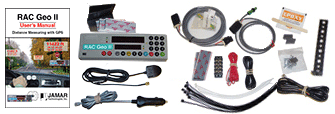

SIGN INVENTORY BUNDLE

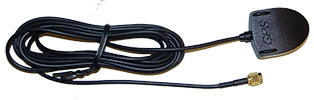

Includes:  Everything you need to do sign inventory in one package. Comes complete with the the RAC Geo II instrument, mounting brackets, auto adapter power supply, external GPS antenna and User Manual. Also includes RACPro software, interface cable, laptop computer and carrying case.

RAC-GEO-II SPECIFICATIONS

Power: 9 to 16 VDC, negative ground.

Display: Dual 6 digit window, high intensity LED.

Separate LED indicators for unit or measurement and interval distance. Four brightness levels.

Accuracy: +/- 5 foot per mile with internal GPS sensor, +/-1 foot per mile with external sensor.

Resolution: 1 foot.

Keyboard: 20 sealed keys, 5 million operation with click & tone feedback. ON/OFF slide switch.

Speed Display: Three digit 0-999 (mph & kph) displayed simultaneous with distance.

Time: Elapsed/Real Time (hh,mm,ss).

Count: Bi-Directional (Up/Down).

Calibration: Automatic & manual with four vehicle calibration and vehicle number ability. Non-Volatile EEPROM Memory.

Test: System check on power up w/display of calibration & vehicle number.

Automatic Distance Conversion: Miles (thousandths) to Total Feet to Meters (kilometers).

Count Hold: Stops accumulation of distance.

Display Hold: Freezes display without loss of distance.

Pre-distance: Capability of starting at known distance or Add/Subtract desired distance value from current distance display.

Interval Distance: Display of distance between selected events & total distance.

Distance Pulse Output: 0-5 VDC, low going high, user selectable interval and duration.

Sensor Error Detection: Checks for sensor error due to vehicle’s dynamic motion.

Memory Retention: Non-Volatile EEPROM for calibration & vehicle numbers — 50+ years retention.

Circuitry: Solid state, surface mount, modular, EEPROM, micro-computer.

Case: ABS non-warping plastic.

Dimensions: 7.8"W x 2.3"H x 1.2" D.

Weight: 6.5 oz.

Operating Temperature: 0°C to 75°C.

GPS: Built-in GPS receiver capable of being used for distance measuring without the need for any other sensor, with accuracy of within 1 foot per 1000 feet.

Memory: 4 MB memory, 400,000 Event locations, 0-9999 Event code identifiers, Distance, Time & Speed, up to 30 hours of GPS data.

Memory Retention: Non-volatile EEPROM, calibration & vehicle numbers.

Data Output: Serial RS-232.

GPS Compatibility: Receive and store GPS coordinates.

WAAS enabled, 12 channel GPS receiver capability allows 2D GPS accuracy of approximately 2 meters.

Without WAAS, depending on the location in the continental US and satellite accessibility, horizontal GPS accuracy is approximately 6 meters.

Warranty: 5-year instrument warranty.

RAC-GEO-II SUPPORT

JAMAR has full-time DMI experts on staff with a combined experience of 40+ years.

Call for DMI Support: 800-776-0940
