TRAX PINNACLE


The TRAX Pinnacle tube counter is the counter for all situations.  The counter contains a combination of hardware and software modifications that make it possible to collect data for vehicle traffic, bicycle traffic and mixed use traffic.



The TRAX Pinnacle also comes with our 4 Level Verification process, which allows you to be sure the Pinnacle was configured correctly, the road tubes are in good working order, the unit was placed at the correct location and that the resulting data has not been modified.

Using our new STARnext Software, data collected with the TRAX Pinnacle can be analyzed for Volume, Classification, Speed, Gap, and more.

Accurately collect in a variety of scenarios

bikes trails, dedicated bike lanes, dedicated vehicle lanes or mixed use lanes.

*Get a full FHWA classification breakdown, with an added column for bicycle datA.

Let our experience work for you.

Our sales/support staff has decades of experience in all aspects of traffic data collection.

KEY FEATURES

Store up to 150 different studies

Four Line LCD Display

Real Time & Date Clock

Long Life Lithium Batteries

USB Port for Computer Download

USB Port for Flash Drive

Collects automotive traffic

Unmatched Time Stamp Resolution

4 Road Tube Inputs

Data for volume, class, speed & more

Lightweight (3 lbs) Design

Watertight Pelican Case

Membrane Keypad


TIME-STAMPED DATA

Axle time stamping gives you the most flexibility in how you can analyze your data. It provides extensive data reporting options and unparalleled troubleshooting options.



With the TRAX Pinnacle time-stamped data, you can change things like the layout used, the tube spacing used and several options after the data has been collected, reducing the need for recounting.

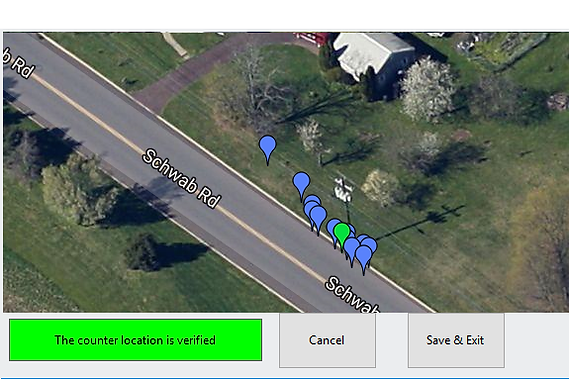

4 Level Verification -               Location Confirmation

The TRAX Pinnacle contains a GPS receiver that will download the count location coordinates to memory when the data collection is started. It will then re-download the coordinates throughout the span of the count. The software analyzes the coordinates throughout the count, verifies whether the counter has been moved and provides a master latitude & longitude for the count.


4 LEVEL VERIFICATION -

                SeTUP ACCURACY

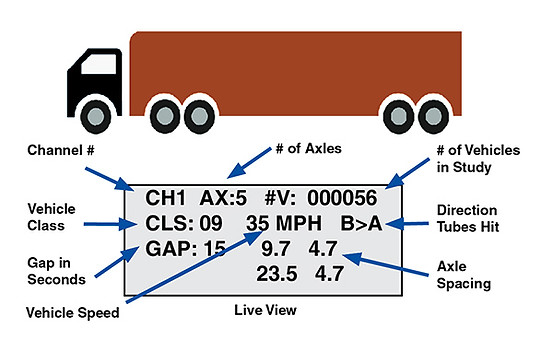

The LiveView status screen that’s available during a study allows you to confirm that everything has been set up correctly. As a vehicle crosses the tubes, the Pinnacle will display the vehicle’s classification and speed, allowing you to verify that the vehicle you saw was what was recorded.

4 LEVEL VERIFICATION -

  ROAD TUBE DIAGNOSTICS

The LiveView status screen that’s available during a study allows you to confirm that everything has been set up correctly. As a vehicle crosses the tubes, the Pinnacle will display the vehicle’s classification and speed, allowing you to verify that the vehicle you saw was what was recorded.


4 LEVEL VERIFICATION -

               Data INTEGRITY

Data Integrity Verification allows you to be sure that the data you are seeing is a true representation of the data that was collected and has not been substantially altered. The data verified lock is applied to any data that has been directly processed from axle time stamps or the per vehicle table. Data that has been manually modified will be shown as unlocked and unverified.


NO BATTERY MAINTENANCE

Many road tube traffic counters use batteries that require constant monitoring to make sure they are fully charged.  One of the great features of the TRAX Pinnacle is its elimination of this time consuming process.  The low power design of the Pinnacle allows it to run off of long life lithium batteries that don't require charging or monitoring and will last for years.


EZ BELT COMPATIBLE

Reduce errors and simplify installation. With the TRAX Pinnacle you can collect data using a 2 foot spacing with standard road tubes or an incredible 4 inch spacing if using the EZ Belt.  The EZ Belt eliminates the need to measure tube spacing.  Since the two tubes are manufactured at a set distance apart, there is no need to measure in the field.


LIGHTWEIGHT, WATER-TIGHT DESIGN

The Pelican case uses a water tight seal, the individually sealed air switches are designed to prevent water from entering, the faceplate uses a membrane keypad with a sealed display and input keys.
The case and batteries used by the TRAX Pinnacle provide this counter with a super light weight (3 lbs.).

UNMATCHED PROCESSING SPEED

The TRAX Pinnacle records data with a time stamp resolution of 0.031ms, making it the fastest recorder of its kind in the world. This speed provides greater data accuracy when using small distances between road tubes.

USB Downloading

In addition to the USB cable download port, the TRAX Pinnacle also has a USB port for memory stick download.  Simply plug a flash drive into the Pinnacle and you are ready to walk away with your data in seconds.

8TH GENERATION DESIGN

The first TRAX data recorder was released by JAMAR in 1997 and for more than 24 years refinements and improvements have been made to the product line. The TRAX Pinnacle is the 8th generation of the TRAX model and reflects the constant thought and care put into keeping the TRAX line on the cutting edge of design. If you have an older generation TRAX, we provide trade-in value to allow you to upgrade to the newest technology.

SUPPORT

Our sales/support staff has decades of experience in all aspects of traffic data collection.

Call for Support: 800-776-0940
